High-Performance Home Energy Storage Solution: HYB48-6500B Inverter & HS48100B LiFePO4 Battery System

2026,04,02

Introduction

In today's world, achieving energy independence and ensuring a stable power supply for your home is more important than ever. Whether you are looking to reduce electricity bills, prepare for power outages, or go completely off-grid, our Powerwall Household Series offers a robust and reliable solution.

This powerful combination features the HYB48-6500B Hybrid Inverter paired with the high-capacity HS48100B 48V LiFePO4 Battery. Designed for efficiency and safety, this system is the heart of any modern residential solar setup.

The Powerhouse: HYB48-6500B Hybrid Inverter

The HYB48-6500B is a 6500W pure sine wave inverter designed to handle the demands of a modern household. It converts DC power from your battery bank into clean AC power for your appliances.

Key Features & Benefits:

Pure Sine Wave Output: Ensures your sensitive electronics—such as computers, medical equipment, and TVs—run smoothly and safely without interference.
High Peak Efficiency (94%): Maximizes energy conversion, ensuring you get the most out of every watt stored in your battery.
Robust Overload Protection: Built to handle surges, with protection mechanisms for loads up to 150%, giving you peace of mind during high-demand usage.
Smart LCD Display: Monitor your system's status, voltage, and load in real-time with the user-friendly LCD interface.
Versatile Communication: Equipped with RS232/RS485 interfaces for easy integration with monitoring systems and smart home setups.

The Storage Core: HS48100B 48V LiFePO4 Battery

A great inverter needs a great battery. The HS48100B is a 48V Lithium Iron Phosphate (LiFePO4) battery module. LiFePO4 technology is renowned for its safety, long cycle life, and thermal stability.

Why Choose LiFePO4?
Unlike traditional lead-acid batteries, our LiFePO4 batteries offer higher energy density and are maintenance-free. With a massive 5120Wh capacity, this unit provides substantial backup power.

Technical Highlights:

High Capacity: Stores 5120Wh of energy to keep your lights and appliances running when the sun goes down.
Advanced Safety Protection: Features comprehensive protection against overcharge (110A/1S Delay), over-discharge (40V cutoff), and overcurrent.
Low Self-Consumption: The system is designed to be highly efficient even in standby, with a low power consumption current of ≤200uA.
Intelligent Management: The battery includes a sophisticated BMS (Battery Management System) with LED indicators and multiple communication ports (RS485/CAN) to communicate seamlessly with the inverter.

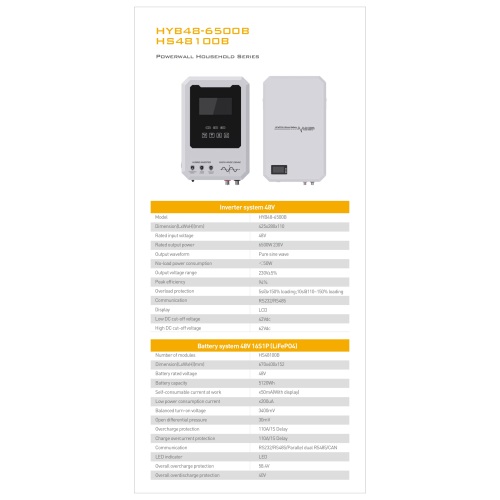

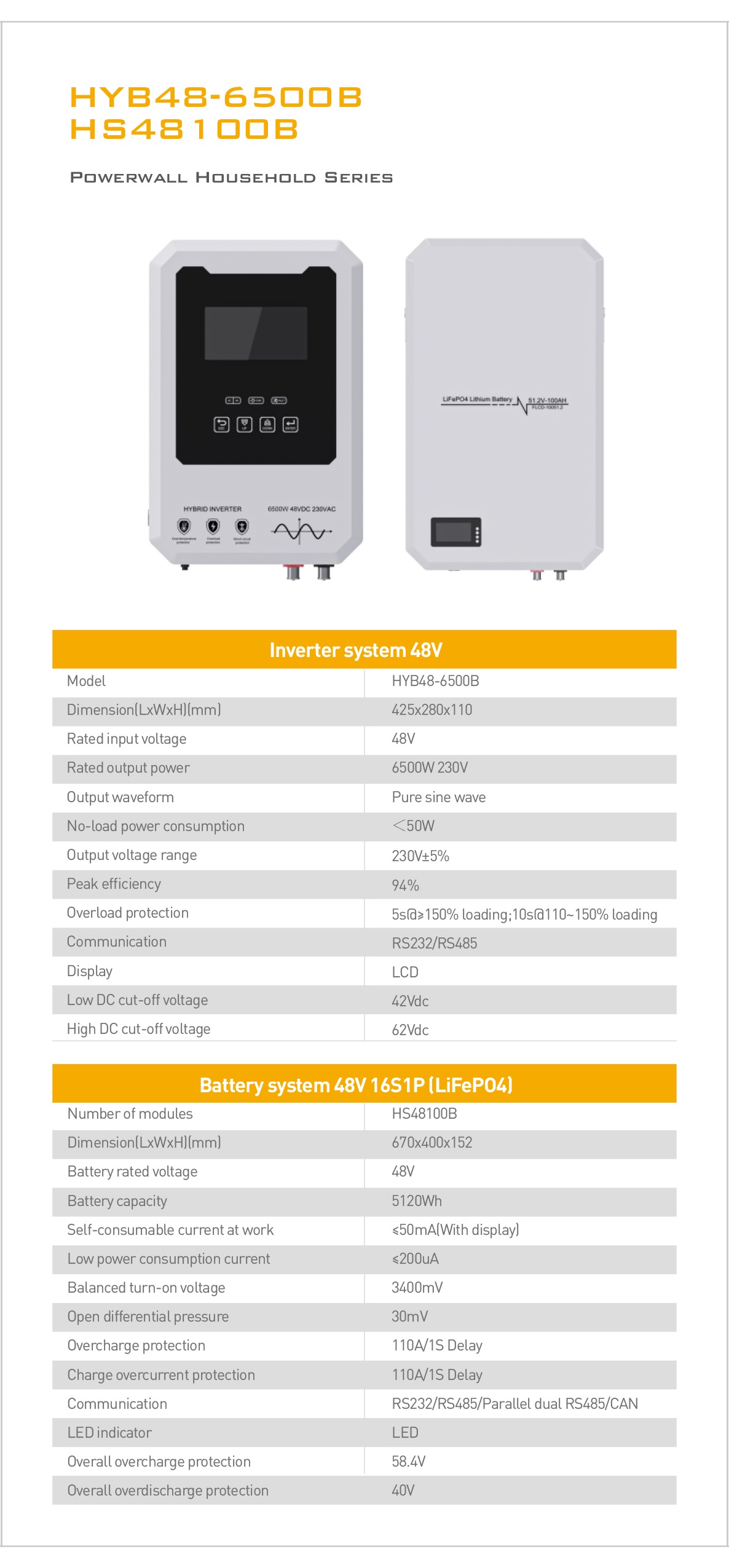

Technical Specifications

Below are the detailed specifications for the Powerwall Household Series.

Feature	HYB48-6500B Inverter	HS48100B Battery
Rated Power/Capacity	6500W Output	5120Wh Capacity
Voltage	48V Rated Input	48V Rated Voltage
Waveform	Pure Sine Wave	N/A
Efficiency	94% Peak Efficiency	Low Self-consumption
Protection	Overload, Low/High DC Cut-off	Overcharge, Over-discharge, Overcurrent
Dimensions (mm)	425 x 280 x 110	670 x 400 x 152
Communication	RS232/RS485	RS232/RS485/CAN
